Standardized continuous forming Door Frame Making Machine
Metal door frames are common components in the construction and door manufacturing industries. Traditional processing methods involve significant manpower, and the precision and efficiency of finished...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
Metal door frames are common components in the construction and door manufacturing industries. Traditional processing methods involve significant manpower, and the precision and efficiency of finished products have always been shortcomings. Production equipment built using automated cold bending technology has undergone comprehensive optimization from process integration to finished product output, and is gradually becoming a choice for many manufacturers to enhance their overall capabilities.

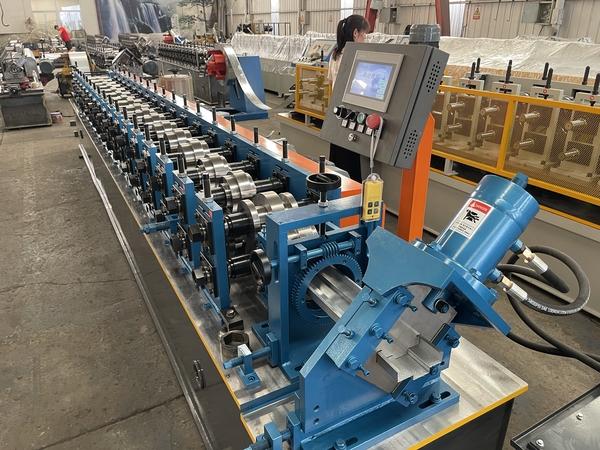

OurDoor Frame Making Machineis a professional automated device that processes metal strips into door frame profiles in a single operation. It integrates the entire process of unwinding, leveling, punching, cold bending, and length cutting, directly producing assemblable door frame components. The machine is controlled by an industrial computer, offering advantages such as stable and efficient operation, long service life, and low maintenance requirements.
Advantages
•High Efficiency and Automation: Continuous production throughout the entire process, reaching speeds of up to 20m/min, significantly reducing manual labor and increasing production capacity several times over.
•Precision and Consistency: 17 precision roller forming processes ensure controllable dimensional tolerances, eliminating deviations in batch production and providing strong installation adaptability.
•Strength and Durability: Cold bending process does not damage the metal structure, improving the yield strength and rigidity of the profiles and making them less prone to deformation.
•Safety and Stability:PLC intelligent control, protection of critical areas, low failure rate, low maintenance, suitable for long-term continuous operation.
Application Areas
*Building Door Industry: Mass production of fire doors, security doors, interior metal doors, and entrance doors.
*Real Estate and Infrastructure: Door frames for residential buildings, office buildings, shopping malls, hospitals, schools, factories, and other projects.
*Steel Structure Engineering: Manufacturing of heavy-duty door frames for industrial plants, warehouses, computer rooms, etc.
Parameter Table
| Formed Material | GI or low carbon or CR | Thickness:1.0-1.5mm |
| Decoiler | Loading capacity | 3T |
| Uncoiling width | 300mm | |
| Inner diameter | 450-550mm | |
| Main body | Roller station | 17 rollers (As your requirement) |
| Diameter of shaft | φ 60mm | |
| Material of rollers | GCr12 (Same as SKD11) | |
| Drive | By gear transmission | |
| Dimension(L*W*H) | 7500х1200х1400mm(customize) | |
| Weight | About4.5T | |
| Cutter | Automatic | cr12mov material, no scratches, no deformation |
| Power | Motor Power | 7.5KW x 2Sets |

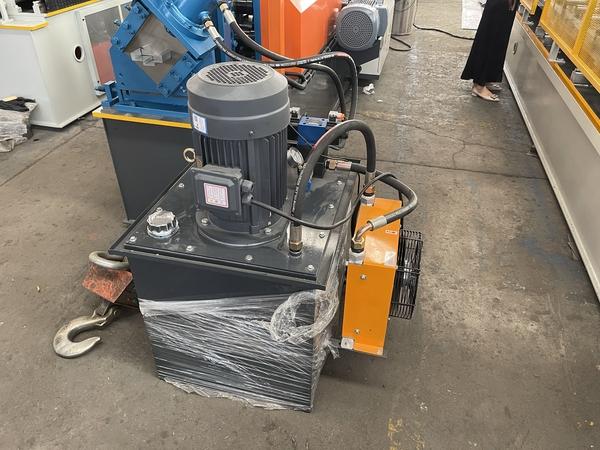

| Hydraulic system power | 5.5KW | |
| Voltage | 415V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 0-20m/min (customized) | Speed is different as per the hole's size. |

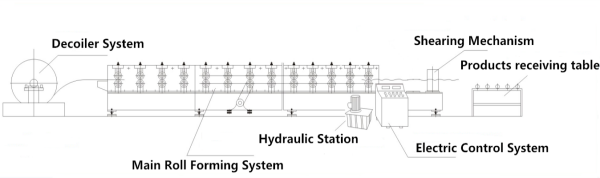

Production Process
From steel coil to door frame, a single machine directly forms the entire structure, eliminating the need for multiple machines and manual bending.
Detailed Display

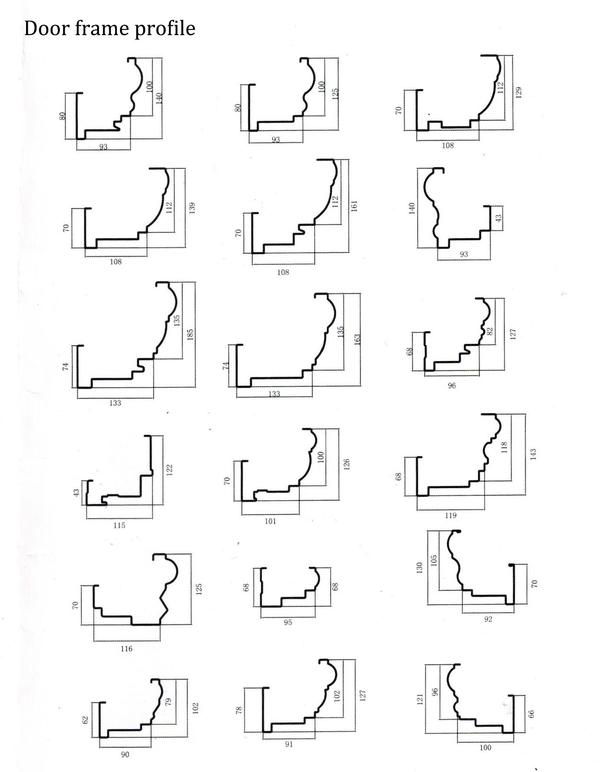

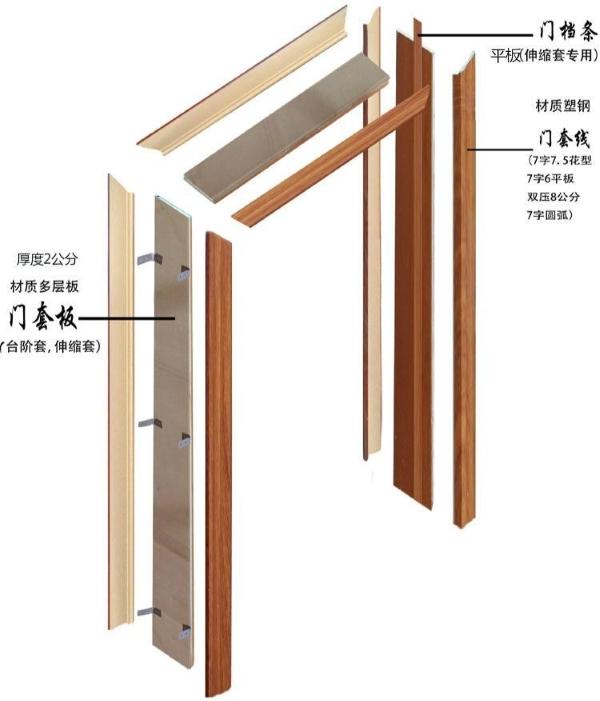

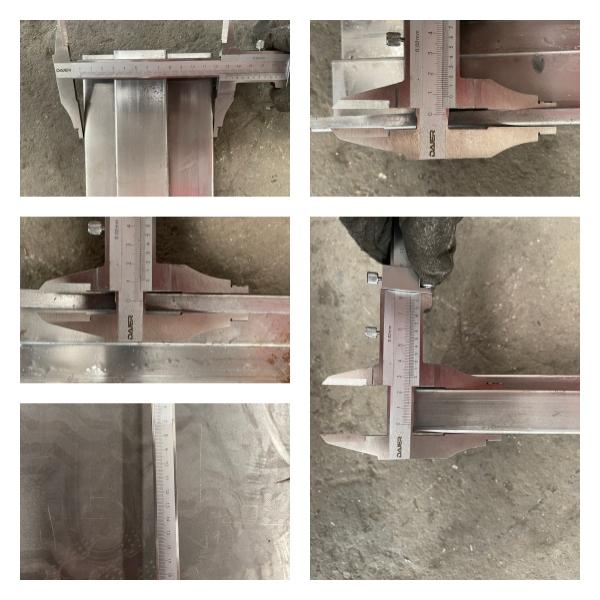

Finished Product Details:

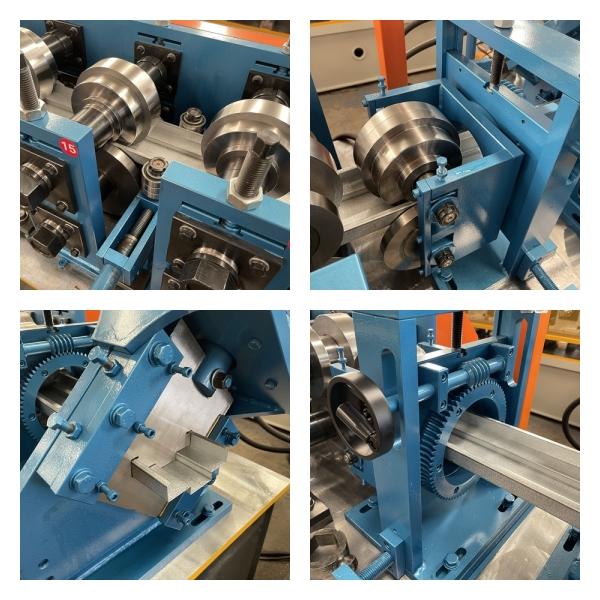

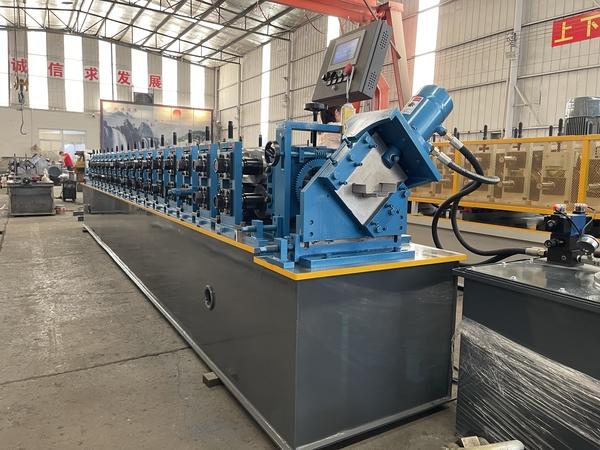

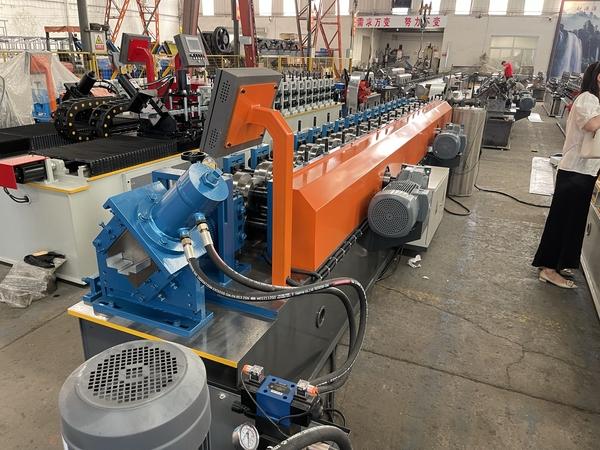

Machine details:

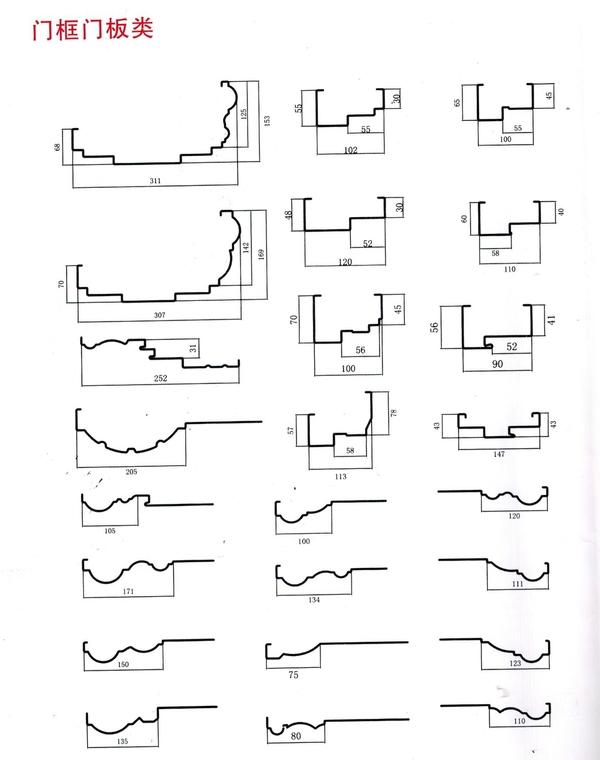

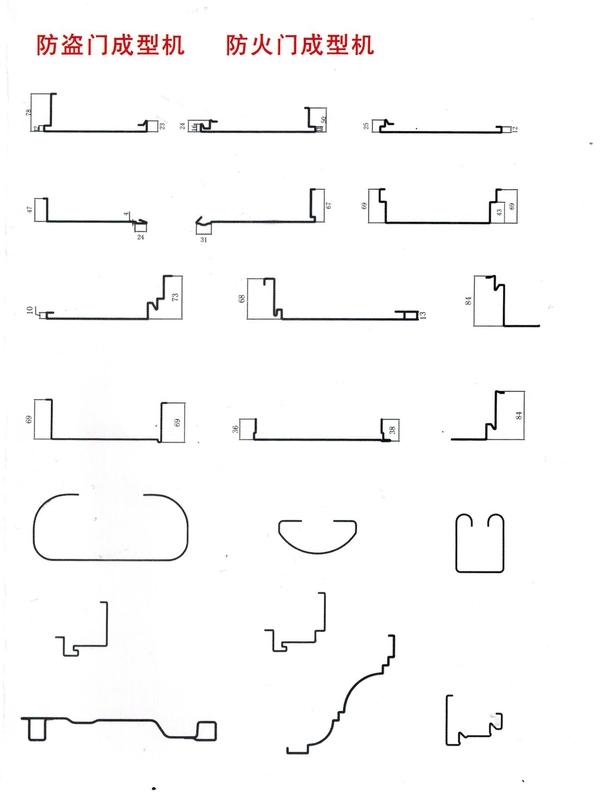

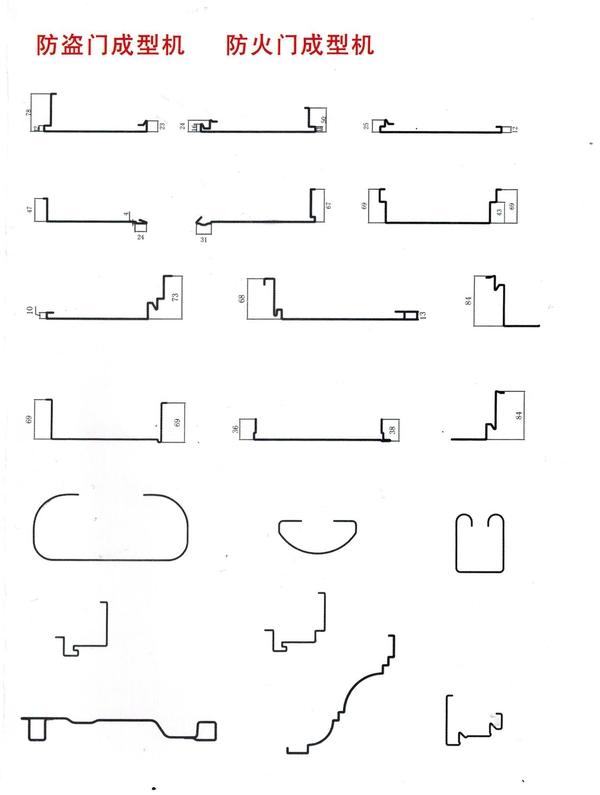

Other Options
When the above patterns don't meet your needs, we also offer the following pattern options, as well as other customization services. In fact, every machine we sell is essentially a customized service tailored to you.
