C purline
metal c shaped bracket c purlin
metal c shaped bracket c purlin1) Slotted Type / Plain Type2) Pre galvanized ,hot dip galvanized or powder coating3)Lengths as per customers' requirements, but standard length as 3.05 meter/10ftProduct namemetal c shaped bracket c purlinMaterialQ235,Carbon steel or SS304 or SS316Surface TreatmentHDG(hot dipped galvanized ),Pre-galvanized,powder coating (Black,Green,White,Grey,Blue)etc.LengthsEither 10FT or 20FT or cut into the length according to Customer's RequirementsThickness1.0mm--3mmHoles11*30mm or according to Customer's RequirementsStylePlain or Slotted or back to backPackagingIn Bundles and fasten with steel strips or by wooden pallets No. SizeThickness TypeSu...

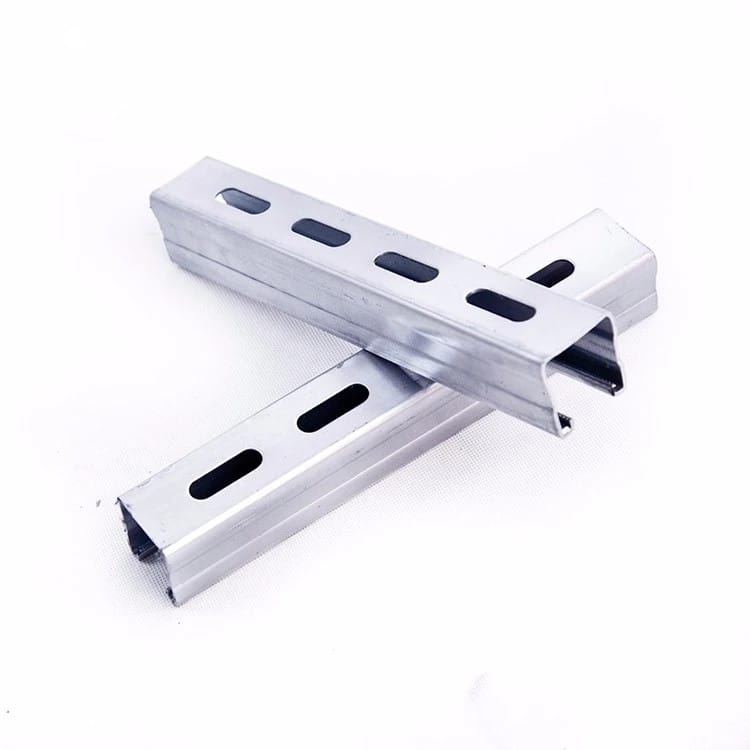

metal c shaped bracket c purlin
1) Slotted Type / Plain Type
2) Pre galvanized ,hot dip galvanized or powder coating
3) Lengths as per customers' requirements, but standard length as 3.05 meter/10ft
Product name | metal c shaped bracket c purlin |
Material | Q235,Carbon steel or SS304 or SS316 |
Surface Treatment | HDG(hot dipped galvanized ),Pre-galvanized,powder coating (Black,Green,White,Grey,Blue)etc. |
Lengths | Either 10FT or 20FT or cut into the length according to Customer's Requirements |
Thickness | 1.0mm--3mm |
Holes | 11*30mm or according to Customer's Requirements |
Style | Plain or Slotted or back to back |
Packaging | In Bundles and fasten with steel strips or by wooden pallets |
No. | Size | Thickness |
Type | Surface Treatment | ||
mm | Inch | mm | Gauge | |||
A | 21x10 | 13/16x13/32" | 1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 | 19,16,14,12 | Slotted,Solid | HDG,PG,PC |
B | 21x21 | 13/16x13/16" | 1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 | 19,16,14,12 | Slotted,Solid | HDG,PG,PC |
C | 41x21 | 1-5/8x13/16" | 1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 | 19,16,14,12 | Slotted,Solid | HDG,PG,PC |
D | 41x22 | 1-5/8x7/8" | 1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 | 19,16,14,12 | Slotted,Solid | HDG,PG,PC |
E | 41x25 | 1-5/8x1" | 1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 | 19,16,14,12 | Slotted,Solid | HDG,PG,PC |
F | 41x41 | 1-5/8x1-5/8" | 1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 | 19,16,14,12 | Slotted,Solid | HDG,PG,PC |
G | 41x62 | 1-5/8x27/16" | 1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 | 19,16,14,12 | Slotted,Solid | HDG,PG,PC |
H | 41x82 | 1-5/8x3-1/4" | 1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 | 19,16,14,12 | Slotted,Solid | HDG,PG,PC |
