Anchors are not only used in coal mines. Many underground jobs and slope reinforcements need anchors. Our Anchor Rod Production Line has five independent machines. It can make Split Set rock bolts with different outer diameters, different thicknesses, and different lengths. From mine roadways to highway tunnels, from water dams to foundation pits, this Anchor Rod Production Line helps you reach many types of customers. Below we list a few main industries. The photos in this article are real shots of our Anchor Rod Production Line. You can see its structure and how it works..

Mine roadway support needs Anchor Rod Production Line

In underground mining of coal, metal, and non metal mines, the roof and side walls need quick support. Split Set rock bolts are popular because they install fast and spread the load evenly. Anchor Rod Production Line can make two common outer diameters, 39mm and 46mm. The pipe thickness is from 2.5mm to 3.5mm. The end plate thickness is 5.0mm. These numbers cover most mine requirements.

Highway and railway tunnels need Anchor Rod Production Line

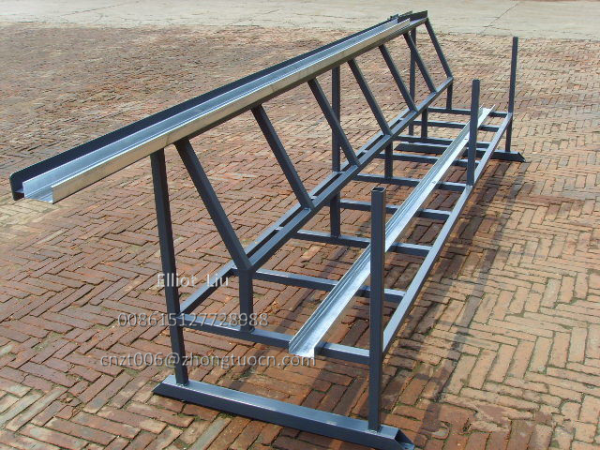

After digging a mountain tunnel, the first support uses rock bolts to hold the rock layers. Split Set rock bolts work for tunnel roofs and side walls too. Anchor Rod Production Line can cut the bolt to the length you need. The receiving table is 2.5 meters per piece, but we can make longer ones if you tell us. Tunnel jobs usually need stable tensile strength. Our roll forming process and TIG welding give you that.

Hydropower and slope reinforcement need Anchor Rod Production Line

Dam slopes, reservoir banks, and highway slopes all need rock bolts to stop landslides. These projects are often outdoors, so they need some corrosion protection on the bolts. Anchor Rod Production Line can work with different steel grades. You buy your own coils, and we just form and weld. Also our five lines are independent. You can buy only the ring making and welding lines first, make small parts, and supply them to job sites.

Underground rooms and foundation pits need Anchor Rod Production Line

Underground parking lots, subway stations, and deep foundation pit walls need temporary or permanent rock bolts. Split Set rock bolts do not need grouting, so they install fast. Job sites like that. Anchor Rod Production Line has a forming speed up to 15 meters per minute. You can make large batches for tight schedules.

Anchor Rod Production Line makes different material thicknesses and sizes

Different industries ask for different bolt specs. Mines may want thicker walls. Tunnels may want a certain length. Our machine was designed for these changes:

Pipe thickness: 2.5mm to 3.5mm (adjustable)

Pipe outer diameter: 39mm or 46mm

End plate thickness: 5.0mm

Ring wire diameter: 58mm

Welding pipe diameter range: 28mm to 50mm

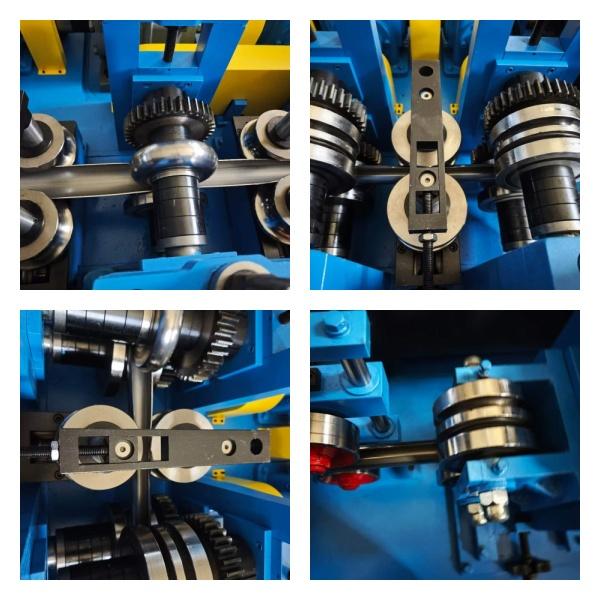

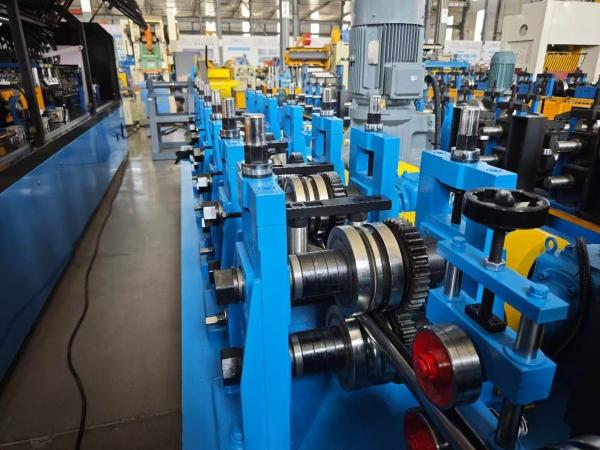

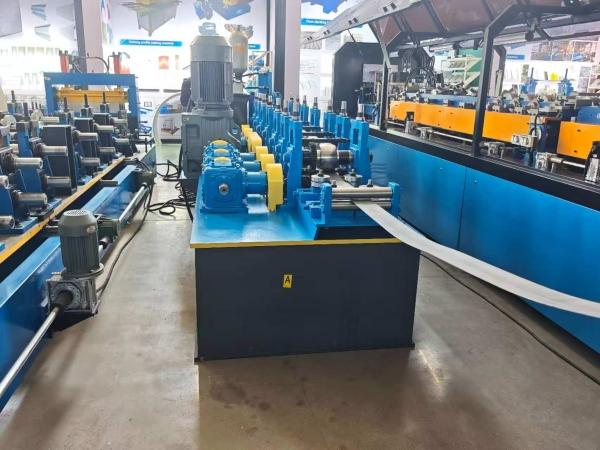

You You do not need to buy several different machines. One Anchor Rod Production Line can switch between these. The next few machine photos show different angles or different parts of this Anchor Rod Production Line.

Technical parameters

The confirmed parameters for the roll forming machine are below.

You can pick the main industry based on your local market

Different countries have different amounts of mines, tunnels, and infrastructure projects. You can look at what your customers mostly do, then push the right bolt specs. Our Anchor Rod Production Line lets you start small. For example, you can buy just the ring making and welding lines. Buy pipe and end plates from somewhere else, make finished bolts, and sell them. When you get more orders, add the roll forming line later. That way your risk is small.

Ending

After reading the industries above, you can see if Anchor Rod Production Line fits your target customers. When you decide which industry and specs to go for, tell us your material thickness, target output, and voltage. We will send you a detailed quote.
